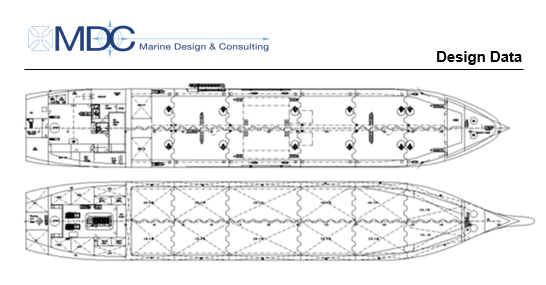

MDC 4206 - 17.500 DWT Oil Product Tanker

General Description

MDC 4206 is an Oil Product and Chemical Tanker, with coated cargo tanks, designed for world wide operations.

Double bottom / sides are arranged throughout the cargo area and in way of all fuel tanks.

The new hull form includes a new developed wave-piercing bow shape giving excellent performance and reduced ship resistance, both in stillwater and in waves / head seas, resulting in reduced service allowance.

The design can be from an easy low cost, basic diesel fuelled variant to a more advanced Gas / DF solution, ice strengthened options, and cargo tank arrangements adapted to operators requirements.

Meeting latest EEDI and emission standards.

Main Particulars
Length overall
Length betw perp
Breadth, mld.
Depth, main deck
Draught, design
Draught, scantling


abt. 159,45 m
155,35 m
23,70 m
14,20 m
9,00 m
abt. 9,30 m

Deadweight and cargo capacity
Deadweight, design
Deadweight, scantling
Cargo tanks


16.700 tonnes
17.500 tonnes
23.500 m3

Speed
Trial speed
Service speed


abt. 14,5 knots
abt. 13,5 knots

Cruising Range and fuel consumption

Cruising range in service condition

Fuel consumption (MGO) at CSR, propulsion

Alternatively:
Fuel consumption (NG) at CSR, propulsion


9.000 nm

abt. 12,2 t/d


abt. 11,2 t/d
